Formulas

You can find Formulas in the Analyze section of Qrvey Composer, as well as the Chart Builder, to create calculated columns that can be used like any other column of data.

Use Cases

Formulas can be used to segment data, to convert the data type of a field (such as converting a string to a date), to aggregate data, to filter results, to calculate ratios, and much more.

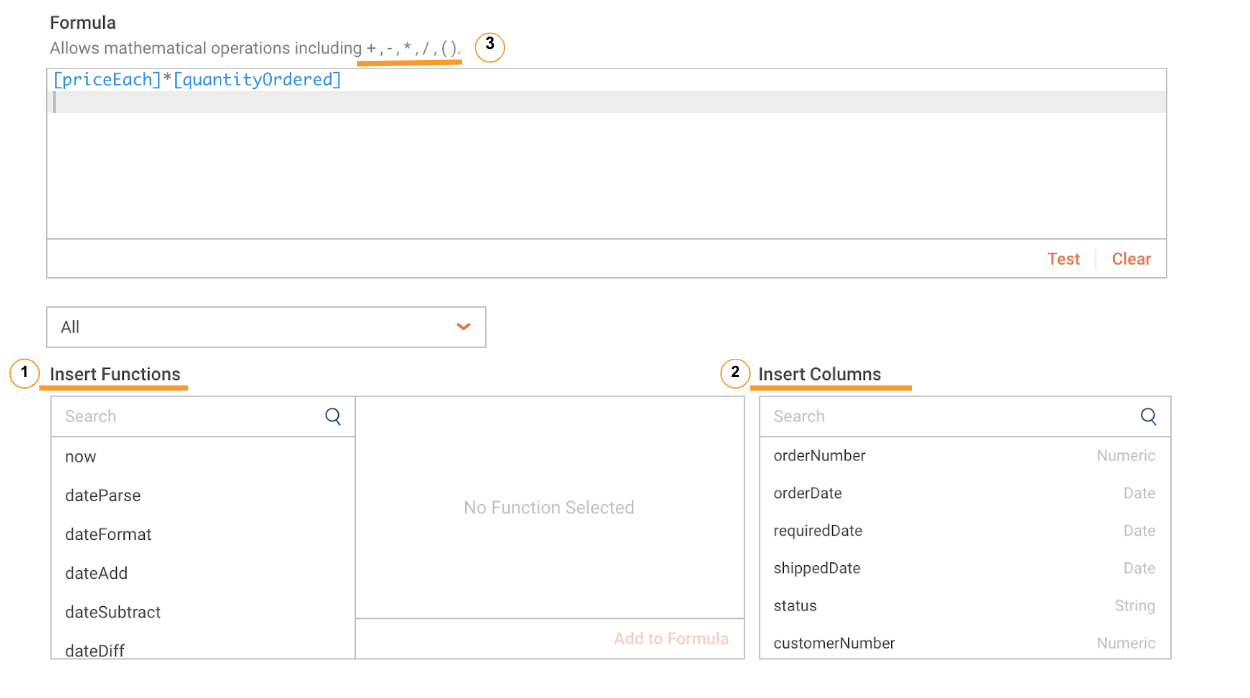

Basic Components

1. Functions - Statements used to transform the values or members in a field.
2. Columns - Dimensions or measures (columns) from your data source.
3. Operators - Symbols that denote an operation.

Examples

• Extracting a Month From a Date

The function that returns any part of a date or date/time value is dateFormat:
Syntax: dateFormat(date_value, 'format')
Example: orderDate is a date data type and we need to extract the month part of it to use on the x-axis of a bar chart.
We can create a new formula as dateFormat( [orderDate], 'MM') and call it orderMonth. The new column will list the month number of order date (i.e. 01 for January, 02 for February, etc.)

• Aggregate Values of All Rows

You can get the aggregate of a column based on all rows of data to use in a calculation. An example use case of this would be calculating the percentage of one product's inventory to all products. All aggregate functions start with agg_.
Syntax: agg_sum(value)
Example: quantityInStock is a number data type and we need to calculate the percentage of each product's quantity to the entire inventory of products. We can create a new formula as: [quantityInStock]*100/agg_sum( [quantityInStock]) and call it quantityPercent.

• Concatenating Text Columns

The simple + sign can be used to stitch strings of text together. An example would be creating full name from first and last name columns.
Syntax: value1 + value2 + value3...
Example: contactFirstName and contactLastName are text type columns and we want to concatenate these together for searches with the last name at the beginning to facilitate sorting. We can create a new formula as: [contactLastName]+' , '+ [contactFirstName] and call it contactName. The returned result for a contact with first name ‘John’ and last name ‘Doe’ will be ‘Doe, John’.

• Using Other Scripting Functions

Painless scripting functions can be used to create calculated columns. An example of this use case would be to use the if function to return a value based on a condition.
Syntax: if (condition) {return result1;} else {return result2;}
Example: orderDate and shippedDate are date type columns that contain order and shipping dates in an ERP system. We want to decide in which cases our shipping department did a good job and for which orders it reacted too slow.

The Function:
if(dateDiff( [orderDate],isNull([shippedDate],now()),'DAYS')<=3) {return 'fast';} else {return 'slow';}
First, make sure that _null_ values of shippedDate are replaced with a datavalue (now) and then run a comparison to get the result fast when shipping happened within three days of taking the order and slow in all other cases.

Notes

1. When using the action commands to add functions and columns to the formula dialog (rather than typing it in) pay attention to the position of your cursor. Functions are added within parentheses and unless you move your cursor inside the parentheses before adding columns or typing, you may create a syntax error in your formula. Make sure you test your formula before saving it!

2. Even if a Painless function is not listed in the Functions list, it may still be supported. Don't hesitate to try. For example [orderDate].dayOfWeek is a perfectly acceptable formula, although it's not listed. It returns the number of weekdays of the date value. Note that this example also illustrates the use of the Apply operator (.) as an alternative way to invoke a function.

Syntax

Fields/Columns - use [ ] around the field or column name, e.g. [Sales].
Functions - function names are case sensitive and must be followed by a bracketed argument list, e.g. sum([Items]) or avg([Temp]).
Operators - the following table shows the available operators. Note that normal operator precedence applies. For example, in the expression 32 + 5 * [Temperature] / 9, 32 is added to five ninths of [Temperature].

Symbol	Operation
.	Apply the function following the dot to the string/text value before the dot.
*	Multiplication of two numbers.
/	Division of two numbers.
+	Addition of two numbers.
-	Subtraction of two numbers, or negation of a number.
==	Test equality of two values.
>	Test if the first value is greater than the second value.
<	Test if the first value is less than the second value.
>=	Test if the first value is greater than or equal to the second value.
<=	Test if the first value is less than or equal to the second value.
!=	Test inequality of two values.
^	Bitwise exclusive or (XOR) of two values.
AND	Logical and of two values.
OR	Logical or of two values.
NOT	Logical not of a value.
( )	Evaluate the bracketed expression before applying operators to it.

Date And Time Patterns

dateFormat function accepts a format argument that determines how the formatted date (and time) is going to be displayed. A quick reference exists in the Formula Builder when the function is selected, but here is a full reference of all possible values for format and an example of how it affects the date string.

Note 1: You may use single, or double quotes around the format string.
Note 2: All dates are treated as GMT in Qrvey. Because of that, the three formats: z, Z, X return values for GMT.

Letter	Date or Time Component	Presentation	Examples
G	Era designator	Text	AD
y, Y	Year	Year	1996; 96
M	Month in year	Month	July; Jul; 07
w	Week in year	Number	27
W	Week in month	Number	2
D	Day in year	Number	189
d	Day in month	Number	10
F	Day of week in month	Number	2
E	Day name in week	Text	Tuesday; Tue
e	Day number of week (1 = Monday, ..., 7 = Sunday)	Number	1
a	AM/PM marker	Text	PM
H	Hour in day (0-23)	Number	0
k	Hour in day (1-24)	Number	24
K	Hour in AM/PM (0-11)	Number	0
h	Hour in AM/PM (1-12)	Number	12
m	Minute in hour	Number	30
s	Second in minute	Number	55
S	Millisecond	Number	978
z	Time zone	General time zone	PST; GMT-08:00
Z	Time zone	RFC 822 time zone	-0800
x	Time zone	iso 8601 time zone	-08; -0800; -08:00

Format strings can be combined to give you the format that you want. For example: dateFormat(“07/04/2001”, "EEE, MMM d, ‘’yy") results in: Wed, Jul 4, ‘01

* dateFormat reference: https://docs.oracle.com/javase/7/docs/api/java/text/SimpleDateFormat.html

Supported Functions

• Numeric: Elasticsearch Math API reference

• Text: Elasticsearch Text API reference

• Date: Supported functions include now, dateFormat, dateParse, dateAdd, dateSubtract, dateDiff, and dateIsNull.

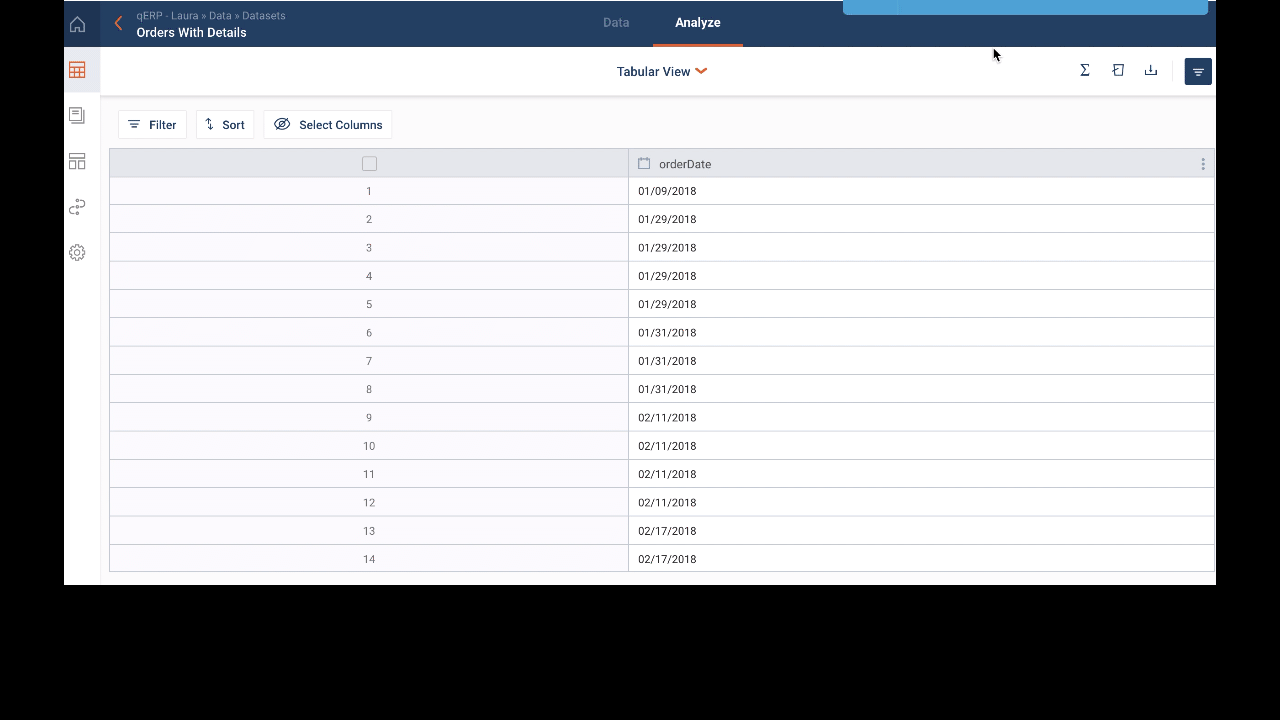

Creating a Formula

1. To create a formula click on the uppercase sigma letter.



2. Click on Create Formula.

3. Look for the function you want to insert, choose it, check it and click Add to formula.

4. Look for the column you want to Insert and add it to the parentheses. Add any additional parameters that are needed for the function (e.g. dateFormat function needs a format parameter that can be set to 'MM' if the date is to be formatted as a month - or 'yyyy' if it has to be formatted as a 4-digit year)

5. Test the formula. Don’t forget to name your formula, and Save it.

6. Use your new formula. Note that newly added columns are hidden by default and have to be made visible from the Select Columns command.

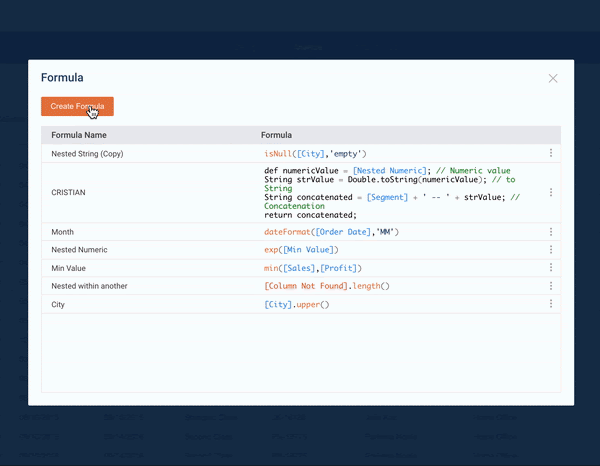

Adding a Nested Formula

You can create nested formulas (formulas inserted within formulas) by copying and pasting the syntax of one formula into another one or by selecting one of the formula columns the same way you do to insert a regular dataset column into a formula’s syntax.

1. Just look for the formula column you want to insert and add it in the parentheses like you would with any other data column.
2. Add any additional parameters that are needed for the function.
3. Test the formula. Don’t forget to name and save your formula.
